TUBA1A Monoclonal Antibody

Image 1

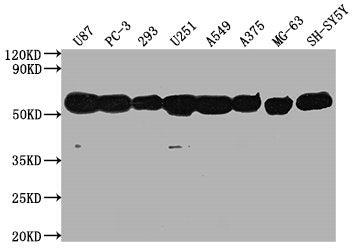

Western Blot

Positive WB detected in: U87 whole cell lysate, PC-3 whole cell lysate, 293 whole cell lysate, U251 whole cell lysate, A549 whole cell lysate, A375 whole cell lysate, MG-63 whole cell lysate, SH-SY5Y whole cell lysate,

All lanes: TUBA1A antibody at 1:5000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 2

Western Blot

Positive WB detected in: Rabbit heatrt tissue, Rabbit liver tissue, Rabbit spleen tissue, Rabbit lung tissue, Rabbit kidney tissue, Rabbit small intestine tissue, Rabbit skeletal muscle tissue

All lanes: TUBA1A antibody at 1:5000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 3

Western Blot

Positive WB detected in: Rat brain tissue, Rat stomach tissue, Rat kidney tissue

All lanes: TUBA1A antibody at 1:5000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 4

Western Blot

Positive WB detected in: NIH/3T3 whole cell lysate, RAW264.7 whole cell lysate, Mouse brain tissue, Mouse kidney tissue

All lanes: TUBA1A antibody at 1:5000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 5

Western Blot

Positive WB detected in: Hela whole cell lysate at 20µg, 10µg, 5µg, 2.5µg, 1.25µg

All lanes: TUBA1A antibody at 1:5000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 6

Western Blot

Positive WB detected in: Hela whole cell lysate

All lanes: TUBA1A antibody at 1:2500, 1:5000, 1:10000, 1:20000, 1:40000, 1:80000, 1:160000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 7

Western Blot

Positive WB detected in: Hela whole cell lysate at 20µg, 10µg, 5µg, 2.5µg, 1.25µg, 0.625µg, 0.3125µg, 0.15625µg

All lanes: Company A, Company B, Company C, Company D, CSB-MA754656A0m antibody at 1:5000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 8

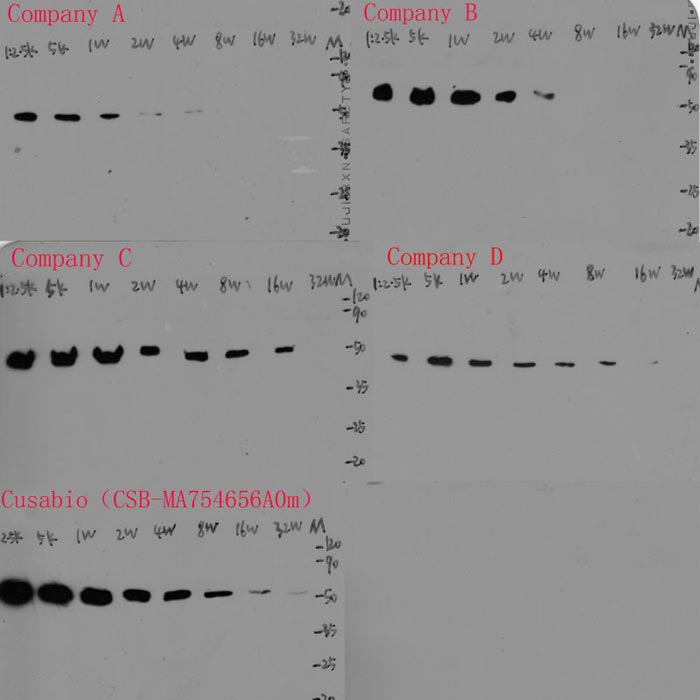

Western Blot

Positive WB detected in: Hela whole cell lysate

All lanes: Company A, Company B, Company C, Company D, CSB-MA754656A0m antibody at 1:2500, 1:5000, 1:10000, 1:20000, 1:40000, 1:80000, 1:160000, 320000

Secondary

Goat polyclonal to Mouse IgG at 1/10000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Image 9

IHC image of CSB-MA754656A0m diluted at 1:150 and staining in paraffin-embedded human tonsil tissue performed on a Leica BondTM system. After dewaxing and hydration, antigen retrieval was mediated by high pressure in a citrate buffer (pH 6.0). Section was blocked with 10% normal goat serum 30min at RT. Then primary antibody (1% BSA) was incubated at 4°C overnight. The primary is detected by a biotinylated secondary antibody and visualized using an HRP conjugated SP system.

Image 10

IHC image of CSB-MA754656A0m diluted at 1:150 and staining in paraffin-embedded human breast cancer performed on a Leica BondTM system. After dewaxing and hydration, antigen retrieval was mediated by high pressure in a citrate buffer (pH 6.0). Section was blocked with 10% normal goat serum 30min at RT. Then primary antibody (1% BSA) was incubated at 4°C overnight. The primary is detected by a biotinylated secondary antibody and visualized using an HRP conjugated SP system.

Image 11

Immunofluorescence staining of Hela cells with CSB-MA754656A0m at 1:75, counter-stained with DAPI. The cells were blocked in 10% normal Goat Serum and then incubated with the primary antibody overnight at 4°C. The secondary antibody was Alexa Fluor 488-congugated AffiniPure Goat Anti-Mouse IgG(H+L).

Image 12

Immunoprecipitating TUBA1A in Hela whole cell lysate

Lane 1: Mouse control IgG (1µg) instead of CSB-MA754656A0m in Hela whole cell lysate. For western blotting, a HRP-conjugated Protein G antibody was used as the secondary antibody (1/2000)

Lane 2: CSB-MA754656A0m (5µg) + Hela whole cell lysate (500µg)

Lane 3: Hela whole cell lysate (20µg)

Image 13

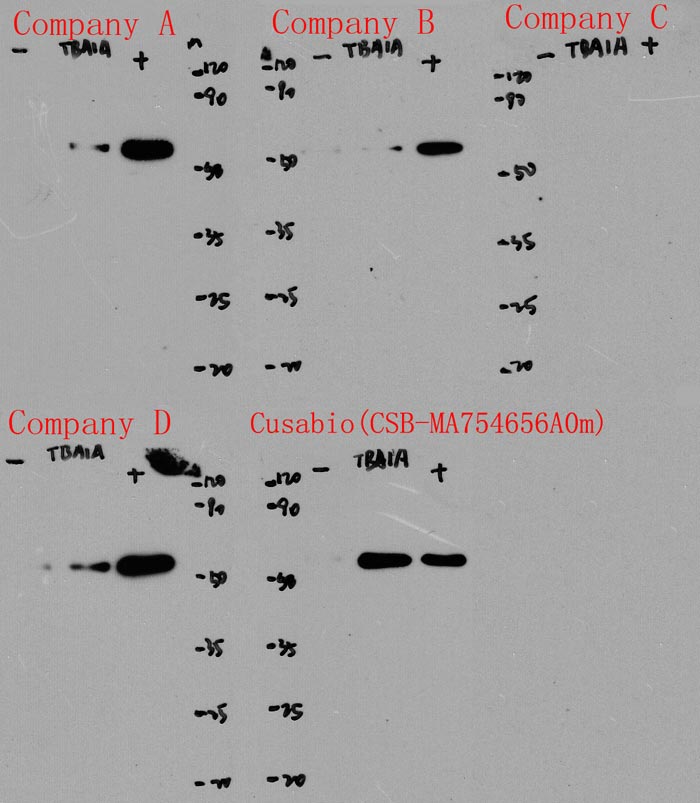

Immunoprecipitating TUBA1A in Hela whole cell lysate

Lane 1: Mouse control IgG (1µg) instead of CSB-MA754656A0m in Hela whole cell lysate. For western blotting, a HRP-conjugated Protein G antibody was used as the secondary antibody (1/2000)

Lane 2: Company A (5µg), Company B (5µg), Company C (5µg), Company D (5µg), CSB-MA754656A0m (5µg) + Hela whole cell lysate (500µg)

Lane 3: Hela whole cell lysate (20µg)

Image 14

Overlay histogram showing Hela cells stained with CSB-MA754656A0m (red line) at 1:150. The cells were incubated in 1x PBS /10% normal goat serum to block non-specific protein-protein interactions followed by primary antibody for 1 h at 4°C. The secondary antibody used was FITC goat anti-mouse IgG(H+L) at 1/200 dilution for 1 h at 4°C. Isotype control antibody (green line) was used under the same conditions. Acquisition of >10,000 events was performed.

Image 15

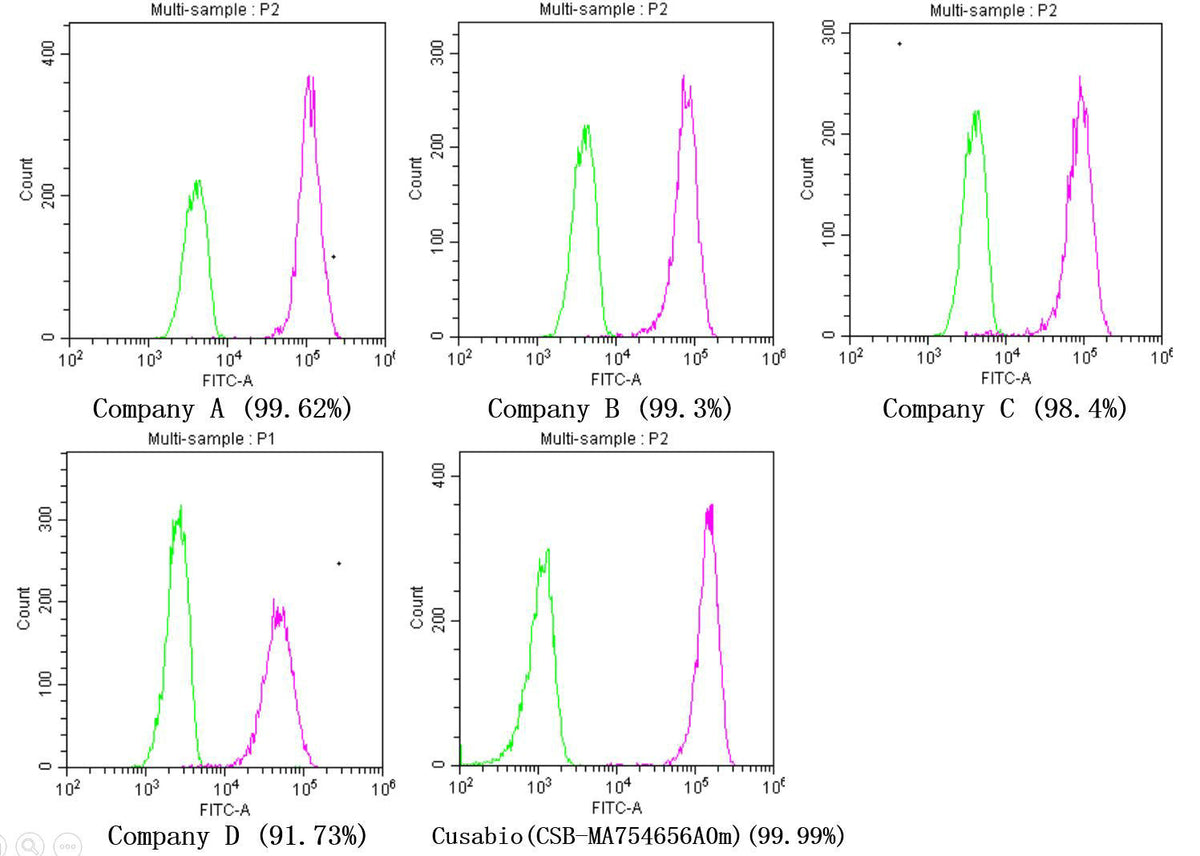

Overlay histogram showing Hela cells stained with Company A (5µg), Company B (5µg), Company C (5µg), Company D (5µg), CSB-MA754656A0m (5µg) (red line) at 1:150. The cells were incubated in 1x PBS /10% normal goat serum to block non-specific protein-protein interactions followed by primary antibody for 1 h at 4°C. The secondary antibody used was FITC goat anti-mouse IgG(H+L) at 1/200 dilution for 1 h at 4°C. Isotype control antibody (green line) was used under the same conditions. Acquisition of >10,000 events was performed.
