Cloud-clone

SKU(재고 관리 코드):HEG154Mu

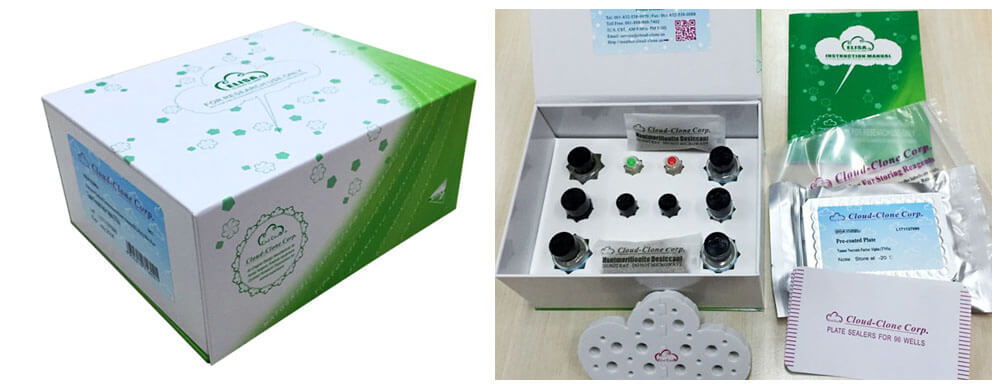

High Sensitive ELISA Kit for Small Ubiquitin Related Modifier Protein 1 (SUMO1)

High Sensitive ELISA Kit for Small Ubiquitin Related Modifier Protein 1 (SUMO1)

UOM
Sensitivity
Detection range

Enzyme-linked immunosorbent assay for Antigen Detection.

Product No.

HEG154Mu

Organism Species

Mus musculus (Mouse).

Sample Type

serum, plasma, tissue homogenates, cell lysates and other biological fluids

Test Method

Double-antibody Sandwich

Assay Length

3h

Detection Range

78-5000pg/mL

Sensitivity

The minimum detectable dose of this kit is typically less than 27pg/mL.

UOM

48T 96T 96T*5 96T*10 96T*100



Specificity

This assay has high sensitivity and excellent specificity for detection of High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1).
No significant cross-reactivity or interference between High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1) and analogues was observed.

Recovery

Matrices listed below were spiked with certain level of recombinant High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1) and the recovery rates were calculated by comparing the measured value to the expected amount of High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1) in samples.

Matrix Recovery range (%) Average(%)
serum(n=5) 86-96 91
EDTA plasma(n=5) 96-104 99
heparin plasma(n=5) 97-105 102

Precision

Intra-assay Precision (Precision within an assay): 3 samples with low, middle and high level High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1) were tested 20 times on one plate, respectively.
Inter-assay Precision (Precision between assays): 3 samples with low, middle and high level High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1) were tested on 3 different plates, 8 replicates in each plate.
CV(%) = SD/meanX100
Intra-Assay: CV<10%
Inter-Assay: CV<12%

Linearity

The linearity of the kit was assayed by testing samples spiked with appropriate concentration of High Sensitive Small Ubiquitin Related Modifier Protein 1 (SUMO1) and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.

Sample 1:2 1:4 1:8 1:16
serum(n=5) 96-103% 78-89% 94-102% 83-96%
EDTA plasma(n=5) 80-89% 97-105% 94-102% 94-101%
heparin plasma(n=5) 79-98% 93-101% 97-105% 85-101%

Stability

The stability of kit is determined by the loss rate of activity. The loss rate of this kit is less than 5% within the expiration date under appropriate storage condition.
To minimize extra influence on the performance, operation procedures and lab conditions, especially room temperature, air humidity, incubator temperature should be strictly controlled. It is also strongly suggested that the whole assay is performed by the same operator from the beginning to the end.

Reagents and materials provided

Reagents Quantity Reagents Quantity
Pre-coated, ready to use 96-well strip plate 1 Plate sealer for 96 wells 4
Standard 2 Standard Diluent 1×20mL
Detection Reagent A 1×120µL Assay Diluent A 1×12mL
Detection Reagent B 1×120µL Assay Diluent B 1×12mL
TMB Substrate 1×9mL Stop Solution 1×6mL
Wash Buffer (30 × concentrate) 1×20mL Instruction manual 1

Assay procedure summary

1. Prepare all reagents, samples and standards;
2. Add 100µL standard or sample to each well. Incubate 1 hours at 37°C;
3. Aspirate and add 100µL prepared Detection Reagent A. Incubate 1 hour at 37°C;
4. Aspirate and wash 3 times;
5. Add 100µL prepared Detection Reagent B. Incubate 30 minutes at 37°C;
6. Aspirate and wash 5 times;
7. Add 90µL Substrate Solution. Incubate 10-20 minutes at 37°C;
8. Add 50µL Stop Solution. Read at 450nm immediately.

Magazine Citations
J Alzheimers Dis Plasma SUMO1 Protein is Elevated in PubMed: 26401699
Catalog No. Related products for research use of Mus musculus (Mouse) Organism species Applications (RESEARCH USE ONLY!)
RPG154Mu01 Recombinant Small Ubiquitin Related Modifier Protein 1 (SUMO1) Positive Control; Immunogen; SDS-PAGE; WB.
PAG154Mu01 Polyclonal Antibody to Small Ubiquitin Related Modifier Protein 1 (SUMO1) WB; IHC; ICC; IP.
SEG154Mu ELISA Kit for Small Ubiquitin Related Modifier Protein 1 (SUMO1) Enzyme-linked immunosorbent assay for Antigen Detection.
HEG154Mu High Sensitive ELISA Kit for Small Ubiquitin Related Modifier Protein 1 (SUMO1) Enzyme-linked immunosorbent assay for Antigen Detection.
LMG154Mu Magnetic Luminex Assay Kit for Small Ubiquitin Related Modifier Protein 1 (SUMO1) ,etc. Magnetic Luminex Assay for Antigen Detection.
