VDX Plate with sealant

APPLICATIONS

• Hanging drop crystallization
• Sitting drop crystallization with Micro-Bridges®
• Dialysis crystallization with Dialysis Buttons™

FEATURES

• 24 well plate with raised cover
• Sealant applied to 24 wells, ready to seal with cover slides
• Compatible with 22 mm diameter square and circle cover slides
• Optically clear plastic
• Extremely versatile and cost-effective crystallization platform
• Compatible with UV crystal imaging when used with HR3-231 and HR3-233 - 22 mm x 0.22 mm Siliconized circle cover slides and HR3-215 and HR3-217 - 22 mm x 0.22 mm Siliconized square cover slides

DESCRIPTION

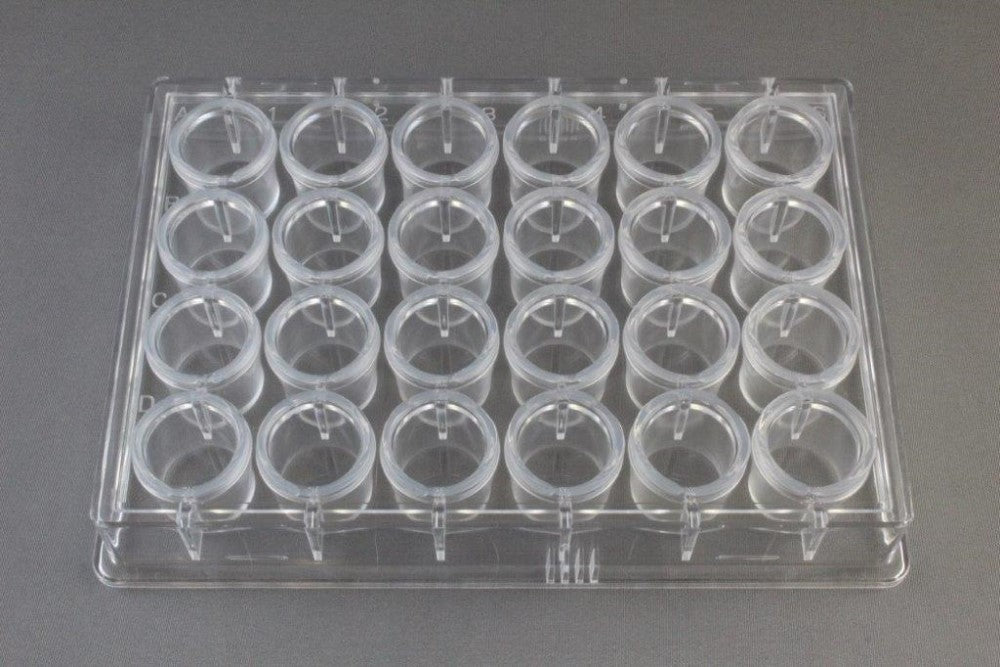

24 well crystallization plate for hanging drop or sitting drop vapor diffusion crystallization (when used with Micro-Bridges) or dialysis crystallization (when used with Dialysis Buttons). Stackable, optically clear plastic 24 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 22 mm diameter circle or square cover slides. Plates are individually wrapped and supplied with applied sealant.
